ELECTRIC PASSENGER VAN

Experience the future of transportation with our Electric 13-seater Passenger Van – the ideal choice for Route, Travel, Airport Shuttles, School Services, and other innovative mobility solutions, combining eco-friendliness and comfort in one.





Features



Power
70kW


Torque
200 N-m


Battery Capacity
52 kWh


Curb Capacity
1790kilograms







Performance

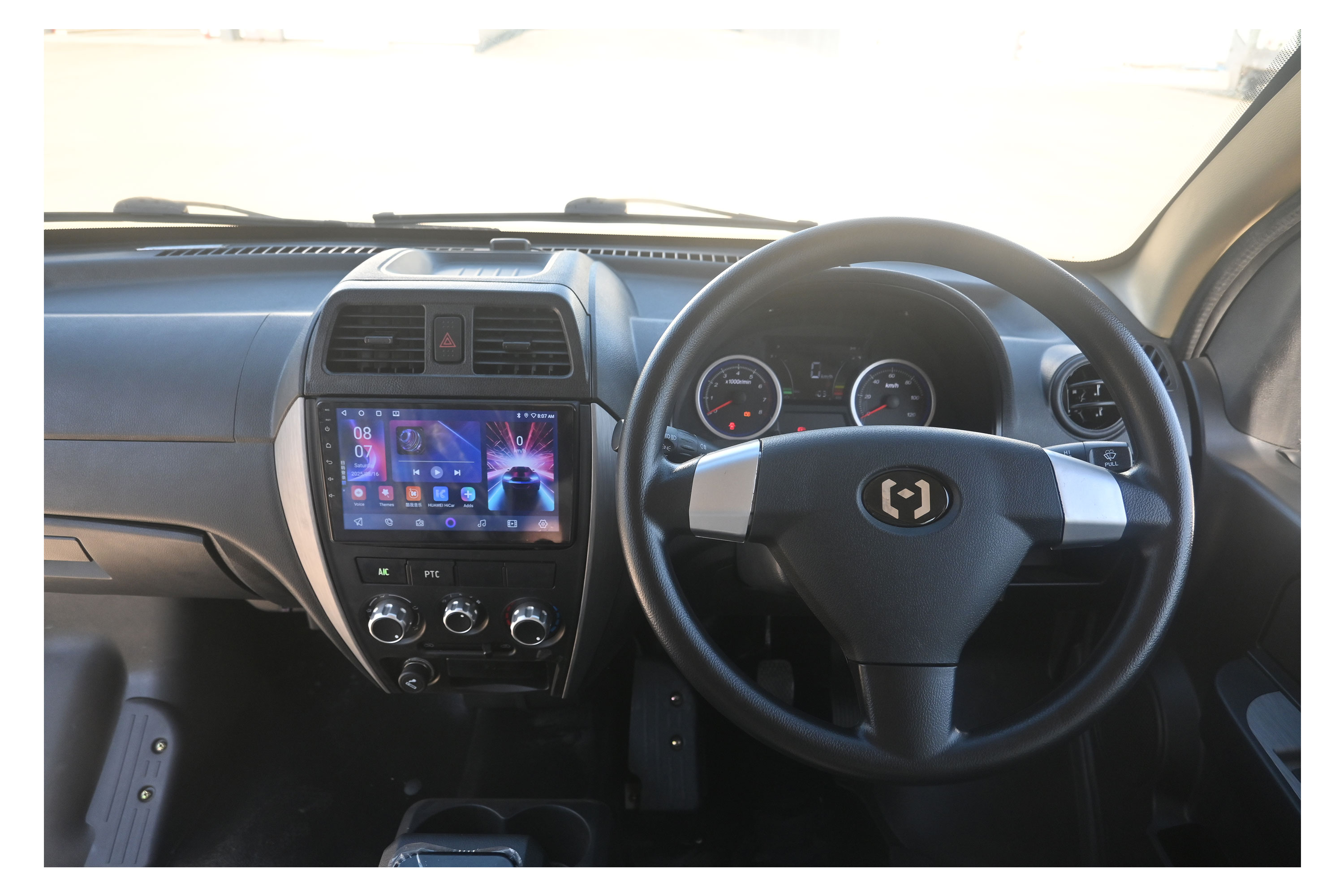

Dashboard

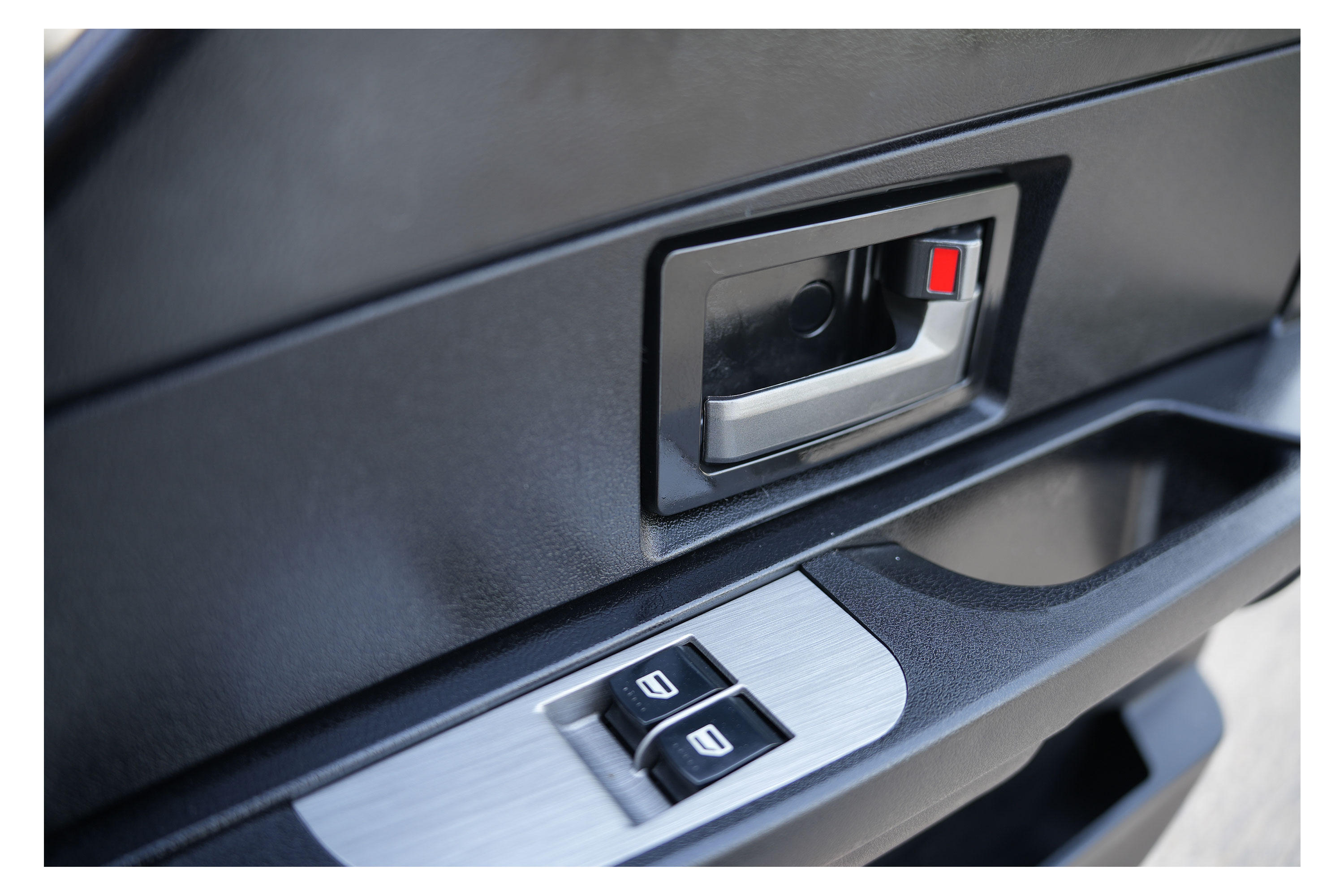

Power Windows

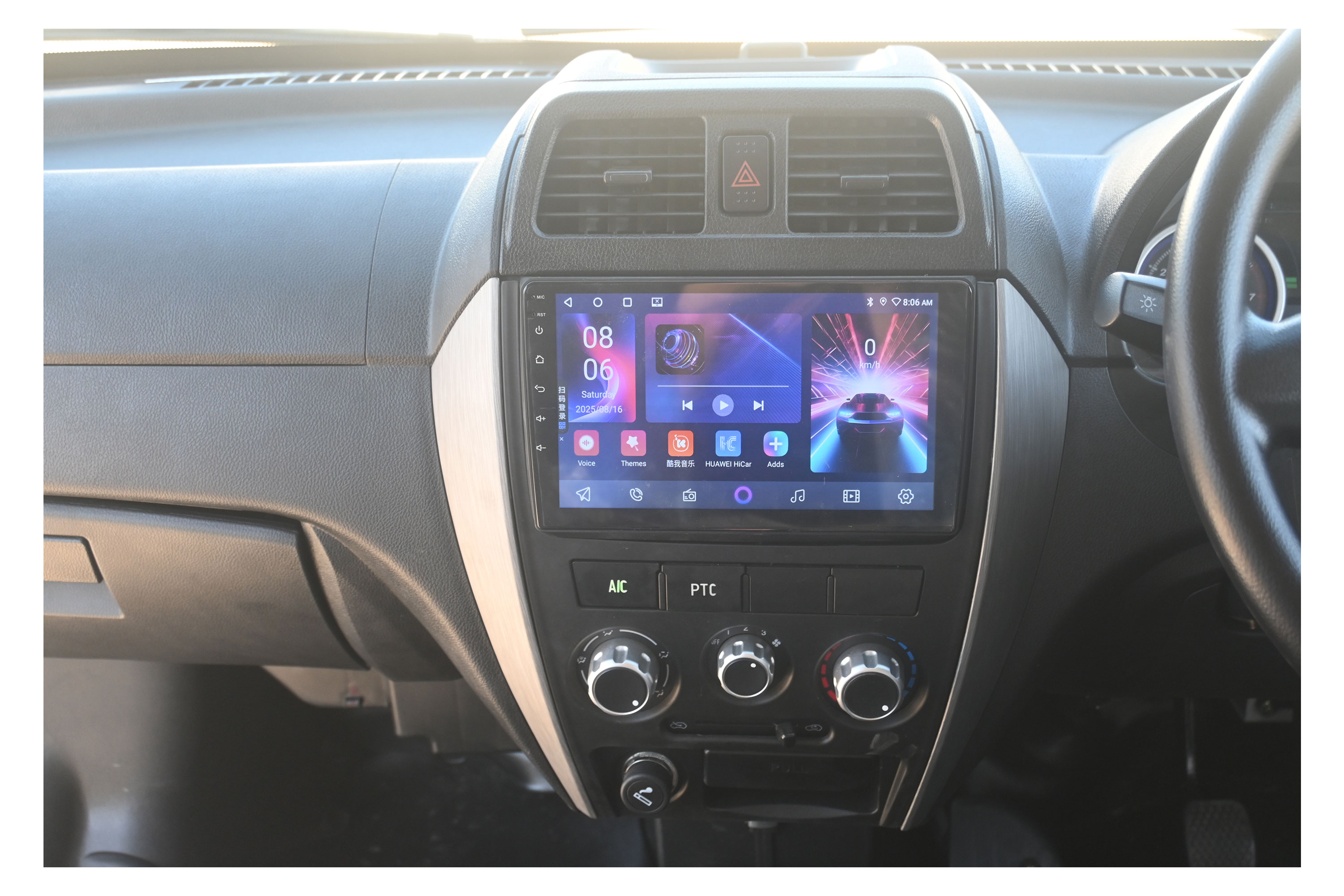

8-inch
Infotainment

Motor is IP67 Rated
to easily traverse
flooded areas


Rotary Gear
Shift Dial

High Performance
CATL Battery

Up to 2,000 charges,
up to 600,000kms. battery life
Liquid Cooling system
IP68 rated seal for waterproofing

Strong Advance Suspensions


SPECIFICATIONS


Seat Capacity: 13
Body Type: Passenger Van

DIMENSION
Wheelbase
Length: 3280 mm
Width: 5100 mm
Height: 1685 mm
Cargo Box Size: 2138 mm

WEIGHT
Gross Vehicle Weight: 3510 kgs
Curb Weight: 1630 kgs
Payload Capacity: 800 kgs

ELECTRIC MOTOR, TRANSMISSION AND BATTERY
Electric Motor Type: Electric, Permanent Magnet Synchronous Motor
Electric Motor Brand: Founder TZ205XS FDM
Maximum Power: 70 kw
Maximum Torque: 200 N-m
Maximum Speed: 100 KPH
Transmission type: 1-speed Automatic
Battery type: Lithium Iron Phosphate (LiFePO4); 334.88 Volts
Battery Brand: CATL
Battery Capacity: 51 kWh
Driving Range (NEDC): 300 kms
Gradeability: 25%
Drive Modes: Normal, Eco
Charging Port type:GBT Fast (DC Charger); 45
Charging time: min (From 20-80%), Slow(AC Charger); 10 hrs (From 20-80%)

STEERING, SUSPENSION, TIRE AND BRAKES
Steering Type: Electric Power Steering, Rack
and Pinion
Front Suspension: MacPherson independent
Rear Suspension: Leaf Spring
Tire Size: 195R15LT 8PR Radial Tubeless
Rim Material: Alloy Wheel
Number of Studs: 5 Studs
Spare Tire: Yes
Brakes Front: Ventilated Disc Brake + ABS/EBD
Brakes Rear: Drum Brake + ABS/EBD
Parking Brake: Mechanical

AIRCONDITIONING SYSTEM
Aircondition: Manual Control

INTERIOR FEATURES
Keyless Entry: Yes
Power Windows: Yes
Audio- Video System: 2DIN, MP5 8” Touchscreen
Driver Seat: 4 way adjustment

SAFETY FEATURES
Airbag: Dual Air Bags
Camera: Reverse Sensor /Camera
Seat belt: Yes
Anti-Lock Braking System (ABS): Yes
Daytime Running Lights: Yes
Low Speed Warning System: Yes
Headlight Dimming Control: Yes
Tire Pressure Monitoring System (TPMS): Yes
Third Brake Light: Yes

ACCESSORIES
On Board Charger/s: 3.3 kW AC
